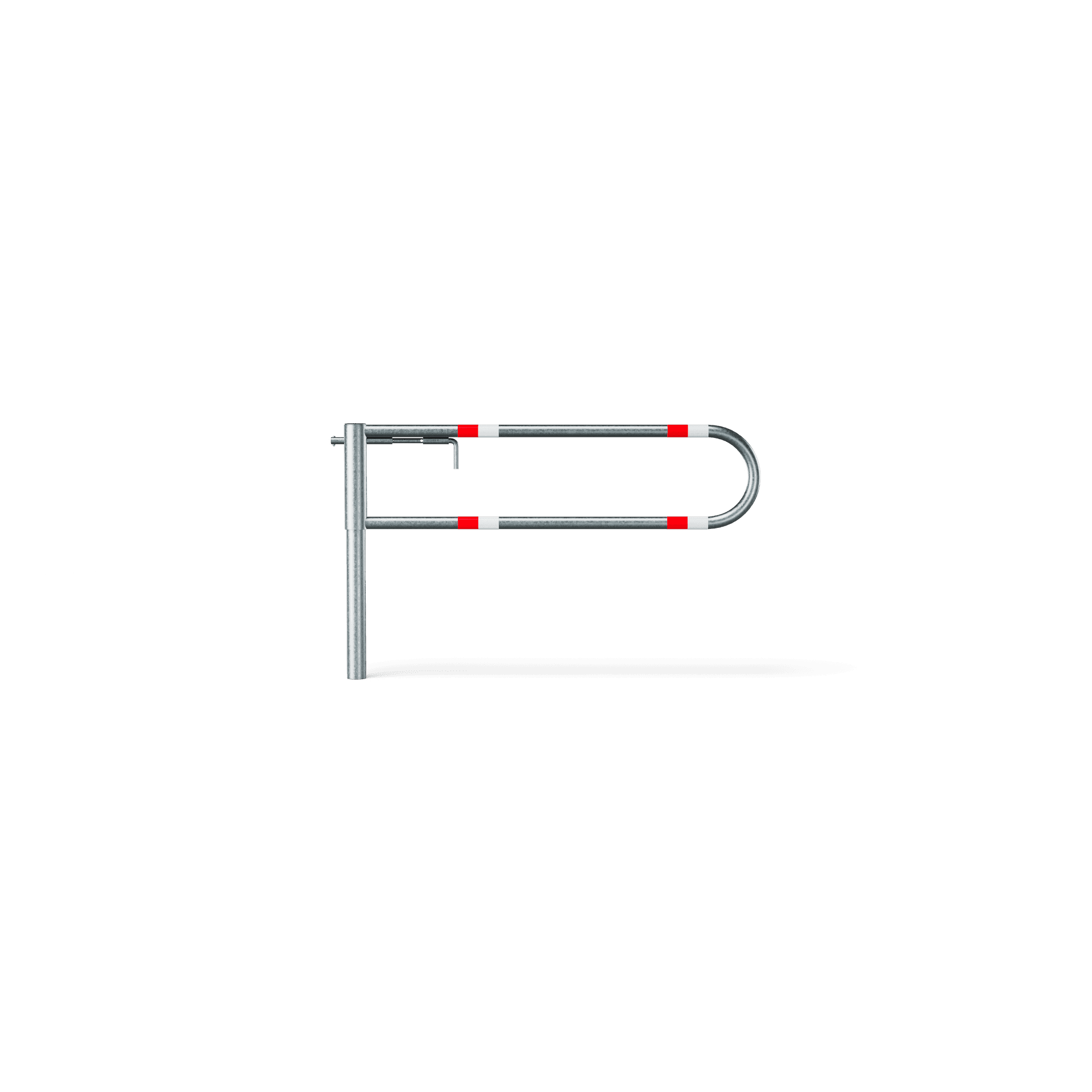

Vehicle barrier BIR
The BIR represents our expertise in self-closing car barriers. The latch is designed for collision from both sides, and is particularly robust. The powerful coil spring package and stop lugs are integrated into the gate post. This makes BIR childproof and eliminates the risk of crushing injuries.
Recommended colors
For more information about Smekab Citylife's complete range of RAL colours, see the colour chart.
Inspiration
Facts
Product name
Vehicle barrier BIR
Designer
Smekab Citylife
Produced by
Smekab Citylife
Properties
- Självstängande
- Öppningsbar 90° medurs/moturs
Material
- Polyethylene
- Steel, hot galvanized
Anchoring
Bolting
Height
1000 mm
Length
1500, 2000 mm
Diameter Post
102 mm
Articles
Here you will find information about articles and accessories.
Articles
| Art. no. | Name | Length |
|---|---|---|
| 73121530 | Bilspärr BIR 1,5 m Grå, reflex Röd/Vit | 1500 mm |
| 73131530 | Bilspärr BIR 1,5 m Grön, reflex Röd/Vit | 1500 mm |
| 73101530 | Bilspärr BIR 1,5 m Röd, reflex Röd/Vit | 1500 mm |
| 73111530 | Bilspärr BIR 1,5 m Svart, reflex Röd/Vit | 1500 mm |
| 73122030 | Bilspärr BIR 2,0 m Grå, reflex Röd/Vit | 2000 mm |
| 73132030 | Bilspärr BIR 2,0 m Grön, reflex Röd/Vit | 2000 mm |
| 73102030 | Bilspärr BIR 2,0 m Röd, reflex Röd/Vit | 2000 mm |
| 73112030 | Bilspärr BIR 2,0 m Svart, reflex Röd/Vit | 2000 mm |
Options, anchoring
Downloads
- DWG files
- bir-dwg.zip
Warranties and Maintenance
- Warranties
- See documents
- Maintenance
- See documents
